Voice Programming Mode

Voice Direct Control

Demonstration

How to control the motor’s movement using voice commands?

Steps:

  1. Preparation

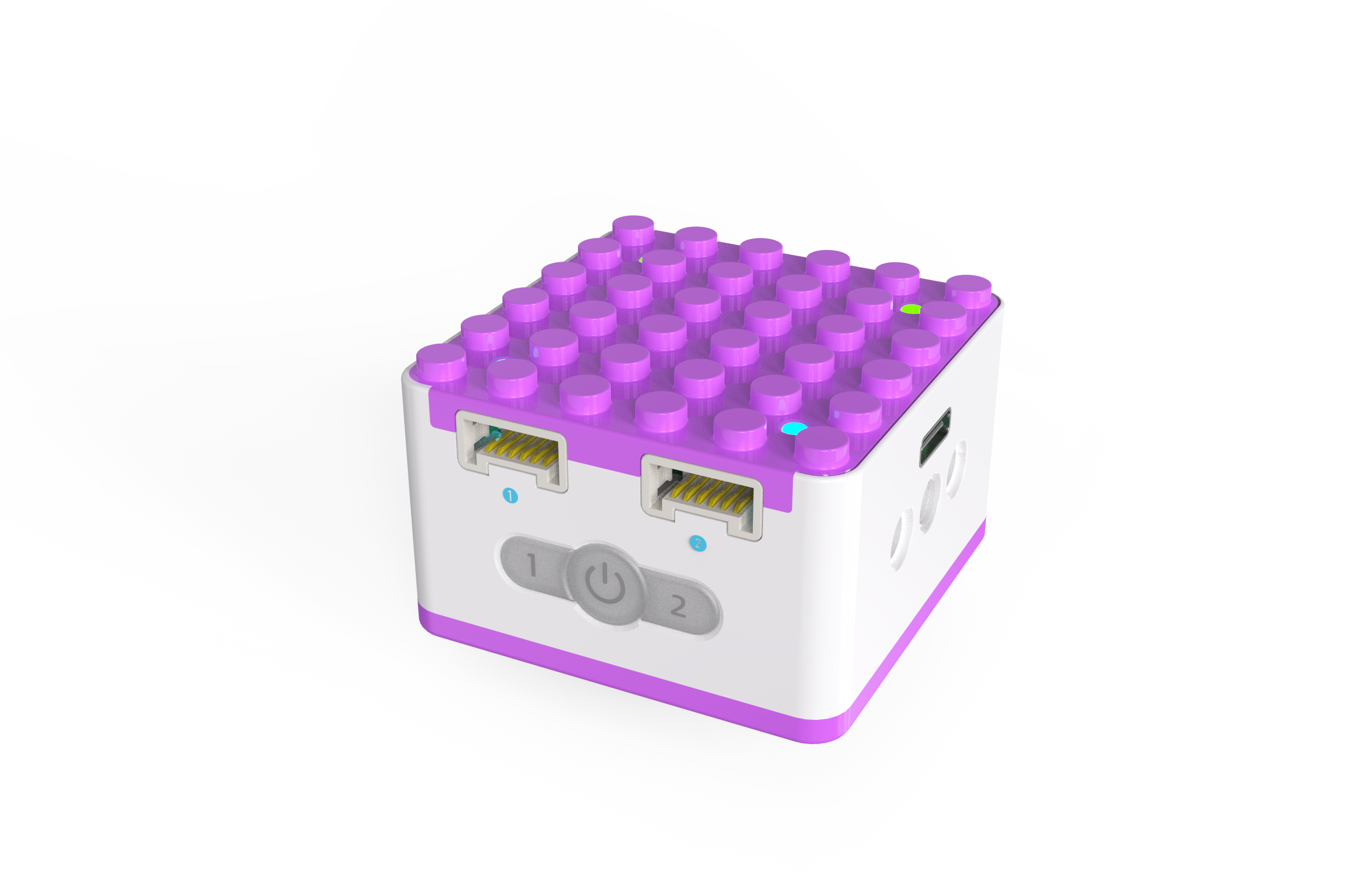

KIDZQbot Xiao Q Robot × 1

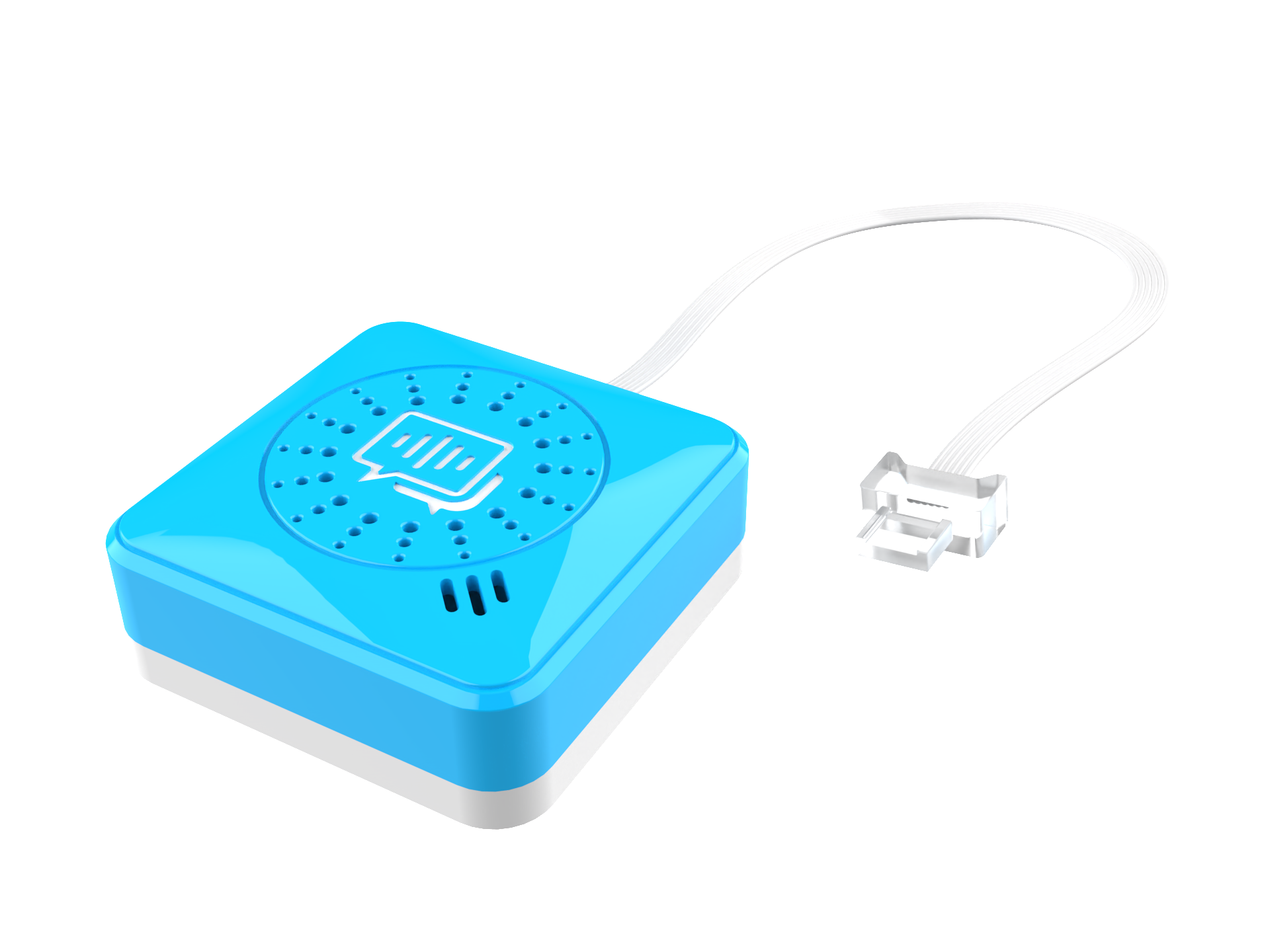

Voice Recognition Sensor ×1

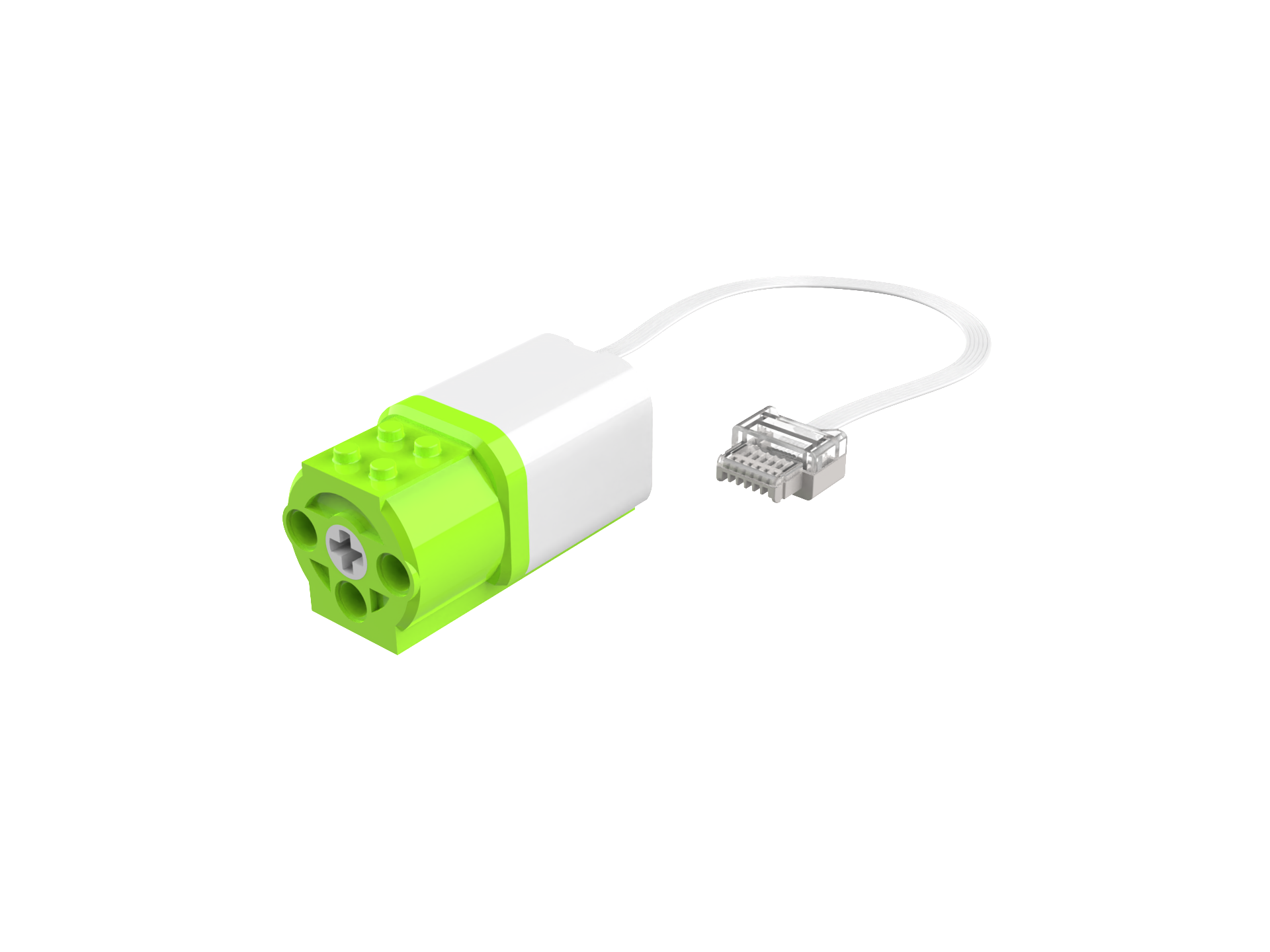

Motor × 1

  1. Steps Display

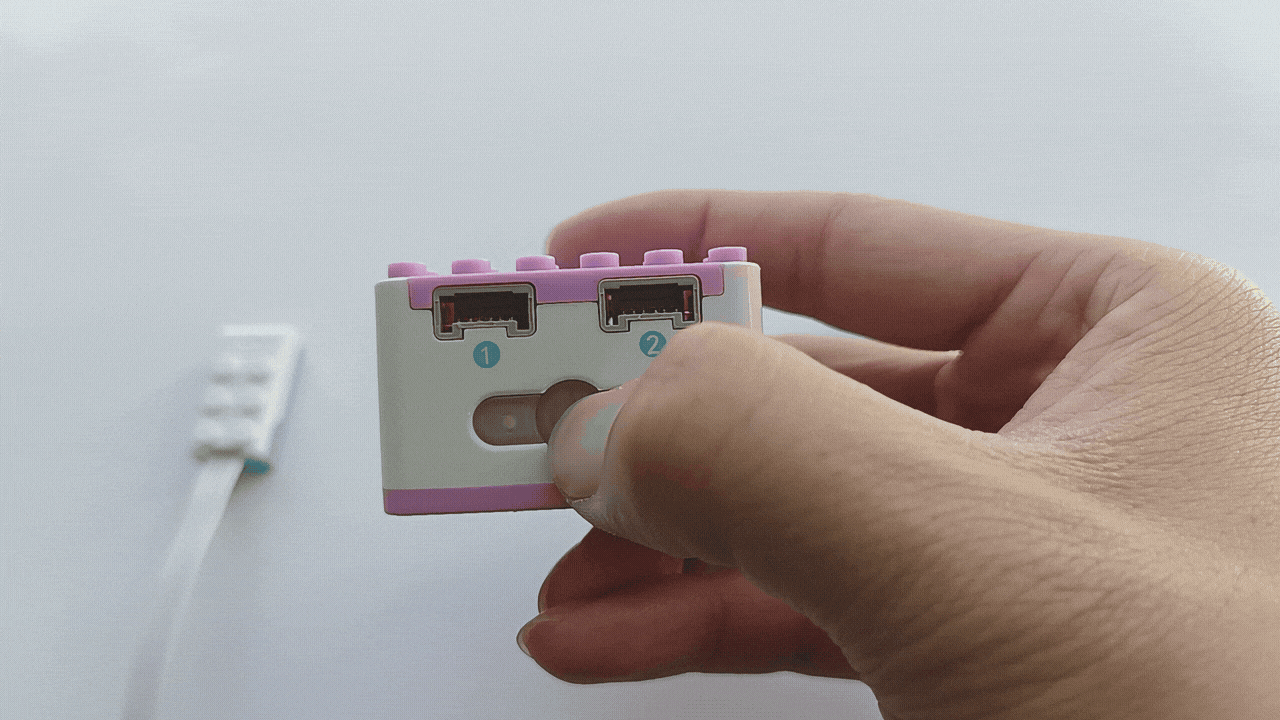

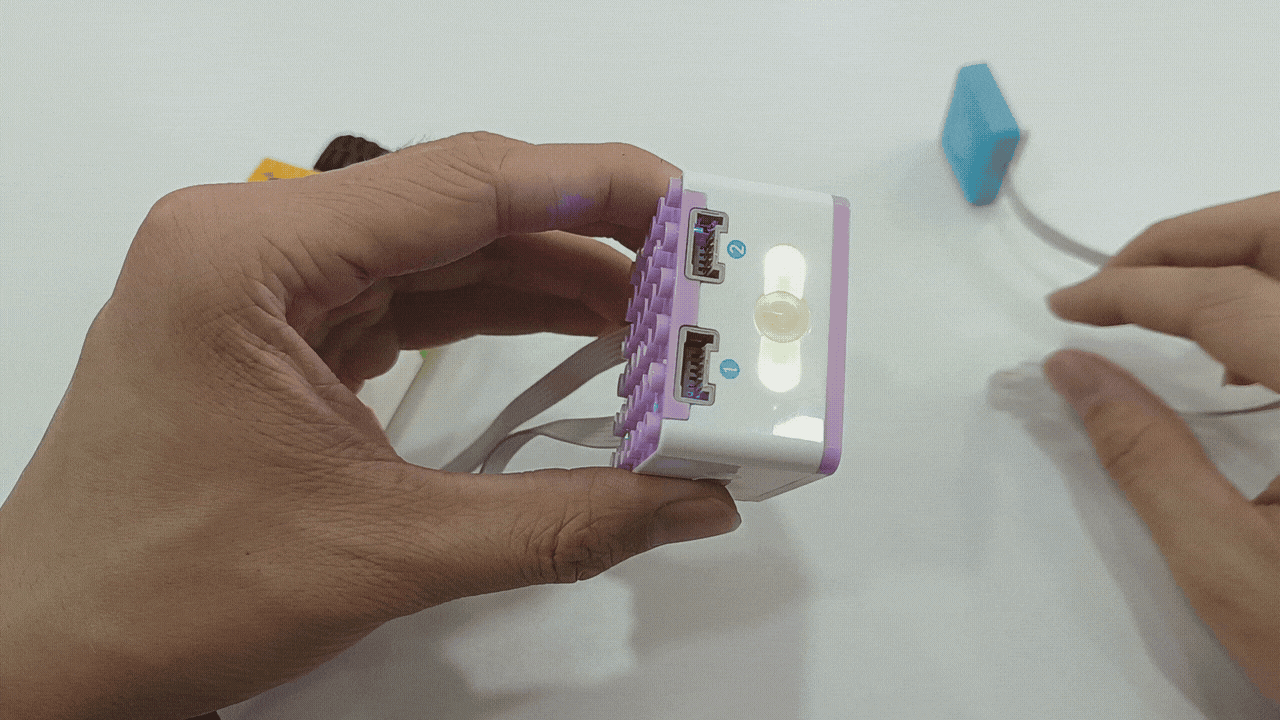

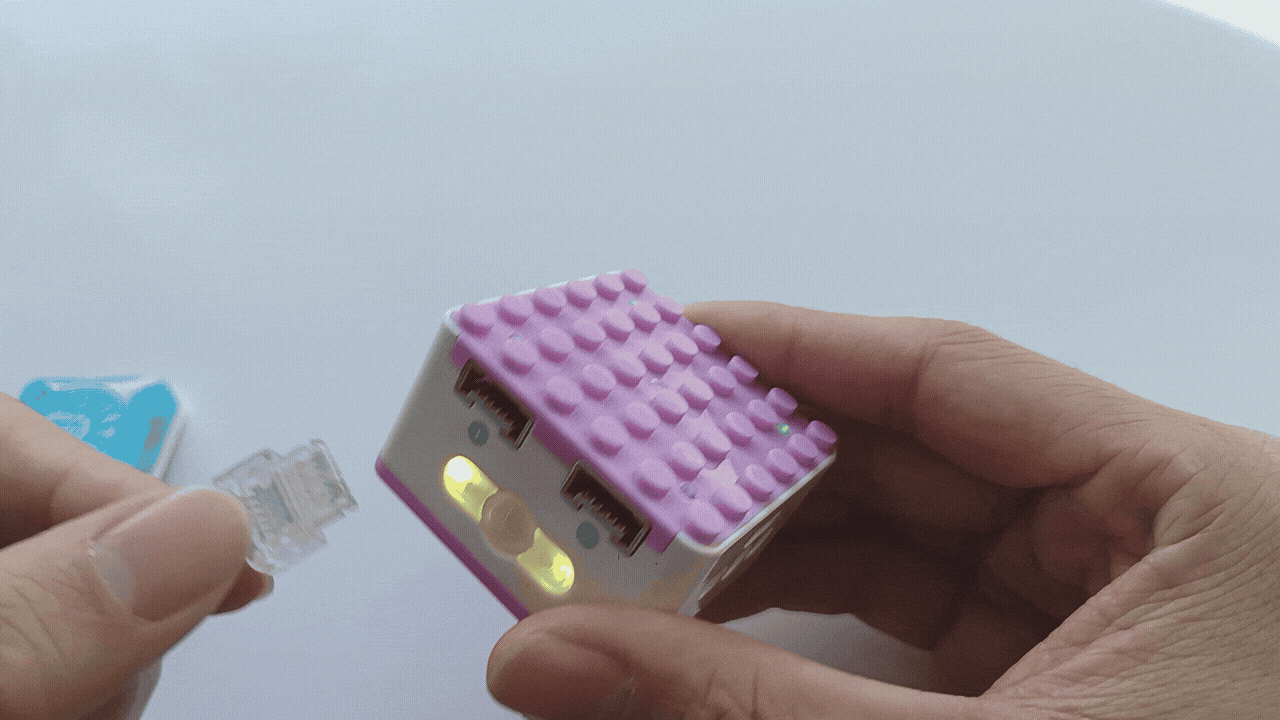

1、Press and hold the power button on the Xiao Q Robot for 3s to power it on.

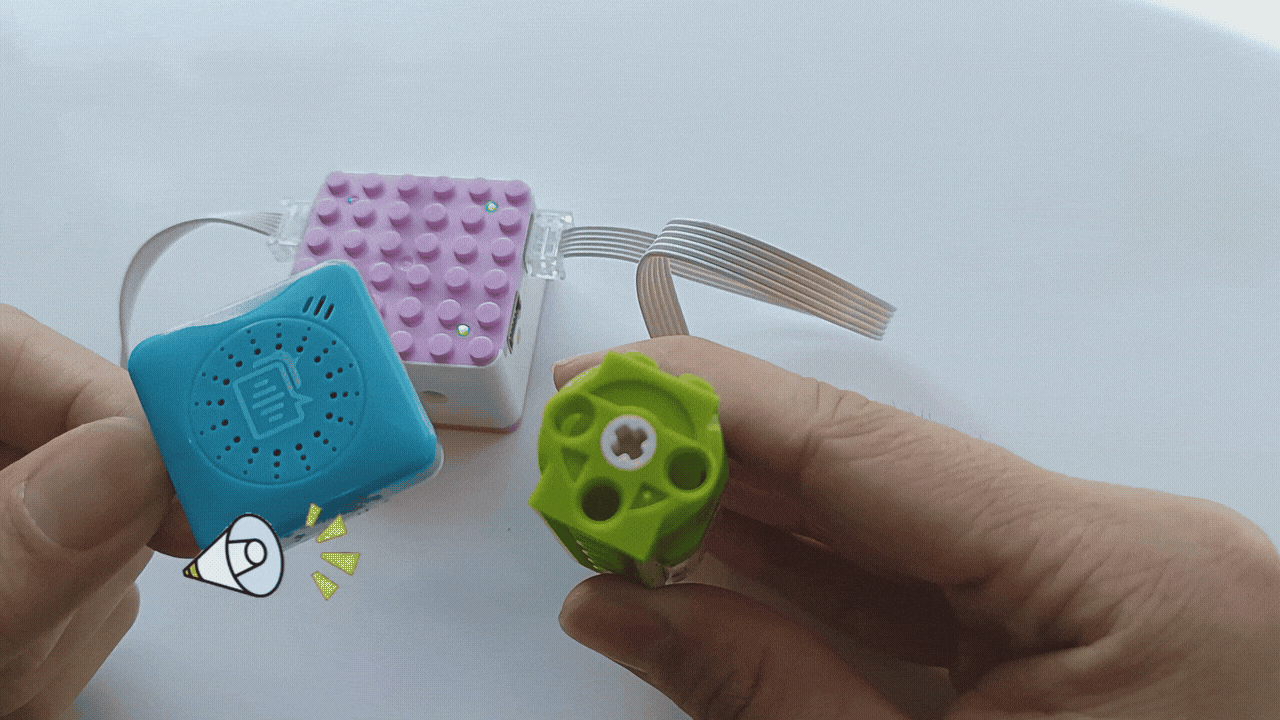

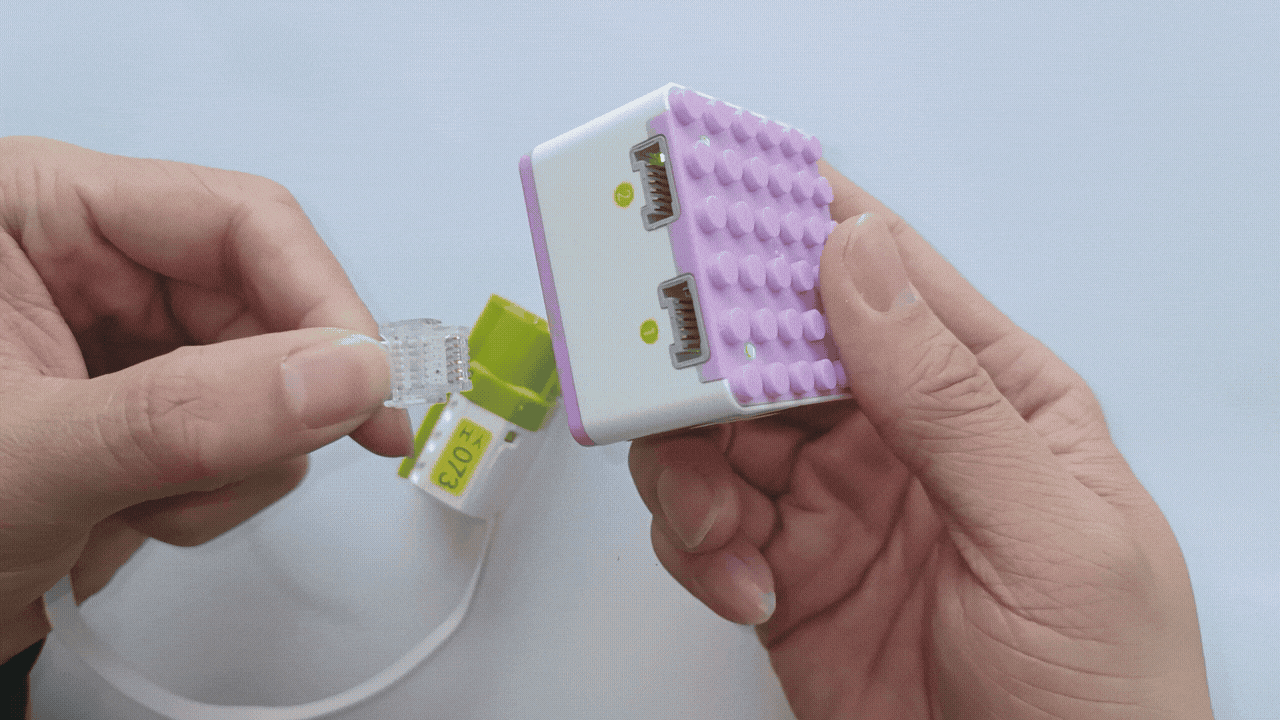

2、Connect the motor to Port 1 (green side).

3、Connect the voice sensor to Port 1 (blue side).

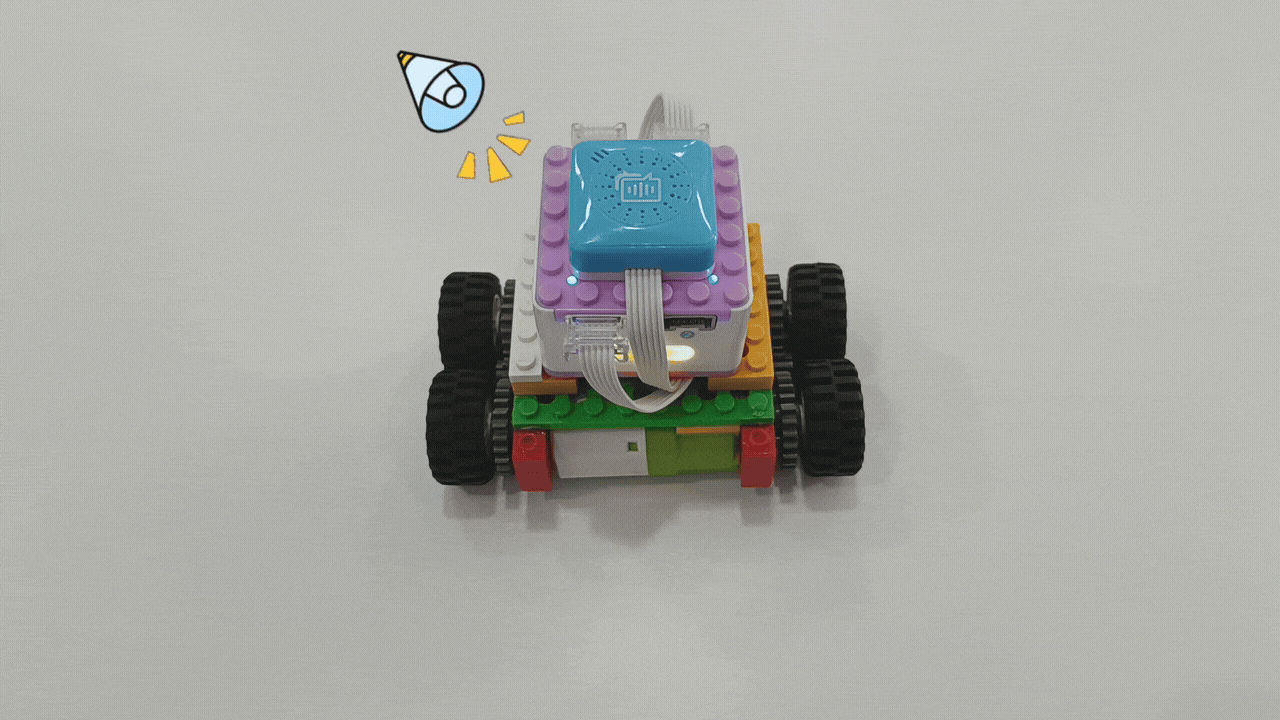

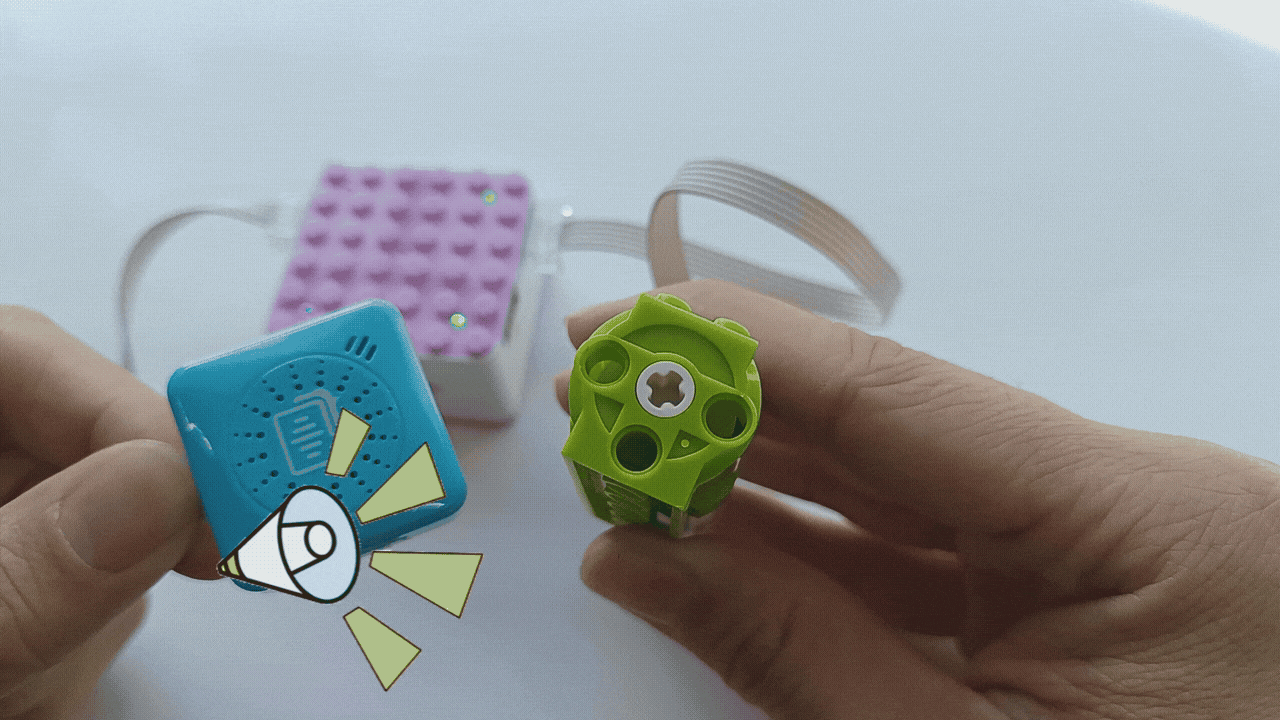

4、Wake up the voice recognition sensor by saying “Hello Xiao Q” and wait for the response.
Say “Motor 1 forward” to rotate the motor. The system will reply,
“Motor 1 forward recognized,” and the motor will rotate.
Say “Stop” to stop the motor.

Note:
The voice command should match the motor’s port, as shown below:

Port Connection

Command Word
(Motor 1 Forward)

Command Word
(Motor 2 Forward)

Port 1 connected to motor

Motor rotates

Motor does not rotate

Port 2 connected to motor

Motor does not rotate

Motor rotates

Both Port 1 and Port 2 connected to motors

Both motors rotate

Motor rotates

*Other command word effects can be tried on your own.

Voice Programming Control

Demonstration

How to use voice programming to control the robot’s movement?

  1. Preparation

KIDZQbot Xiao Q Robot × 1

Voice Recognition Sensor ×1

Motors × 2

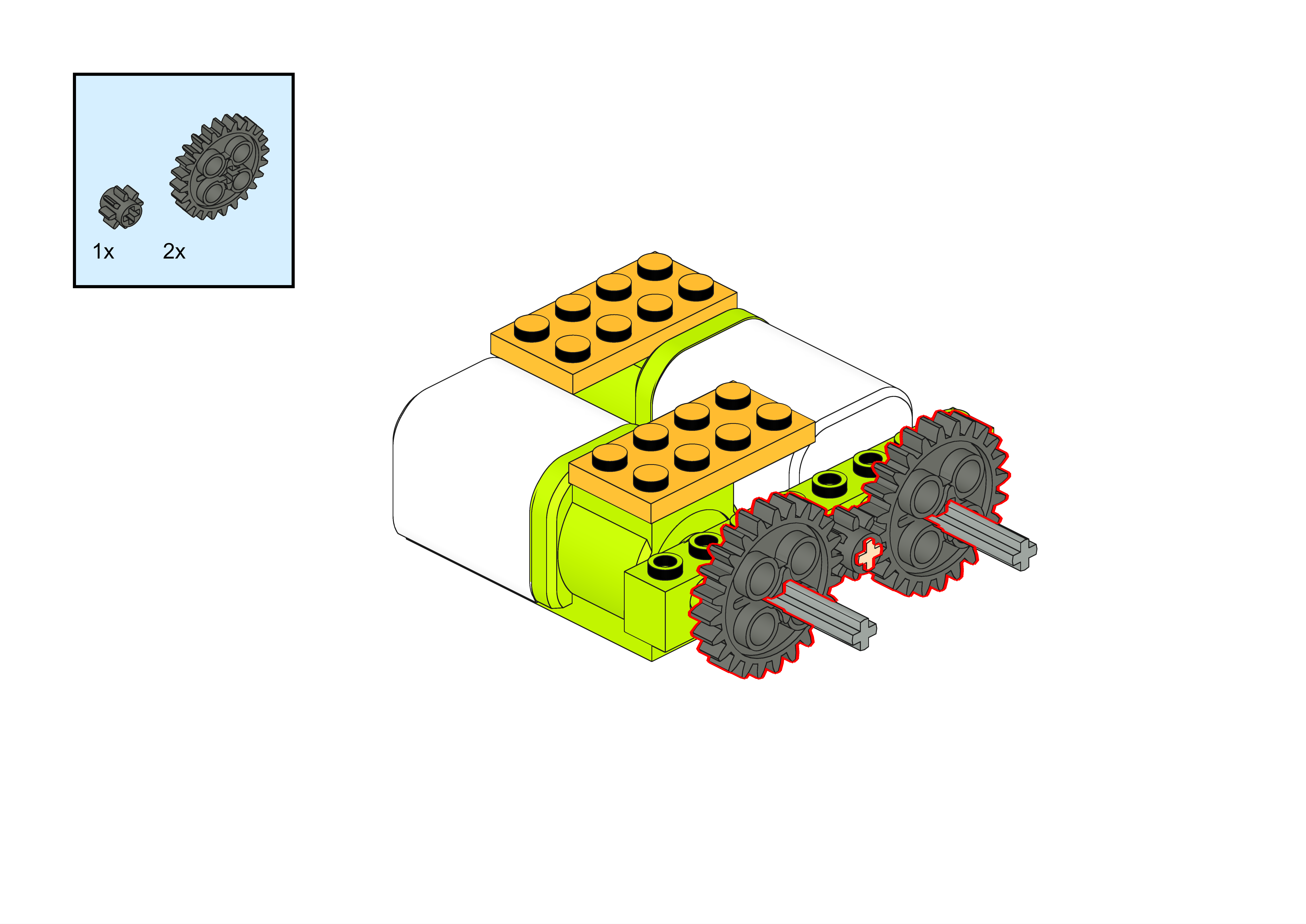

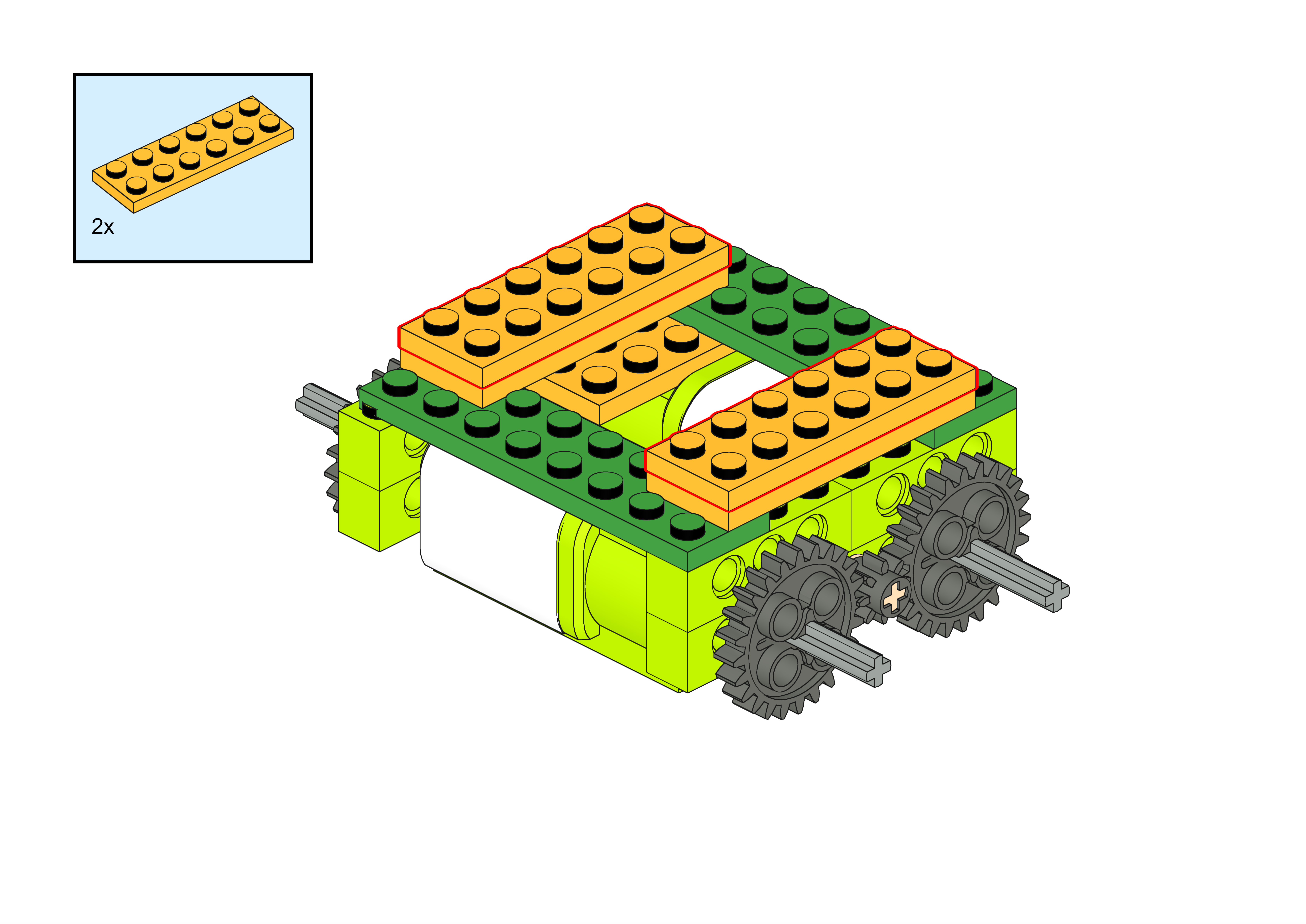

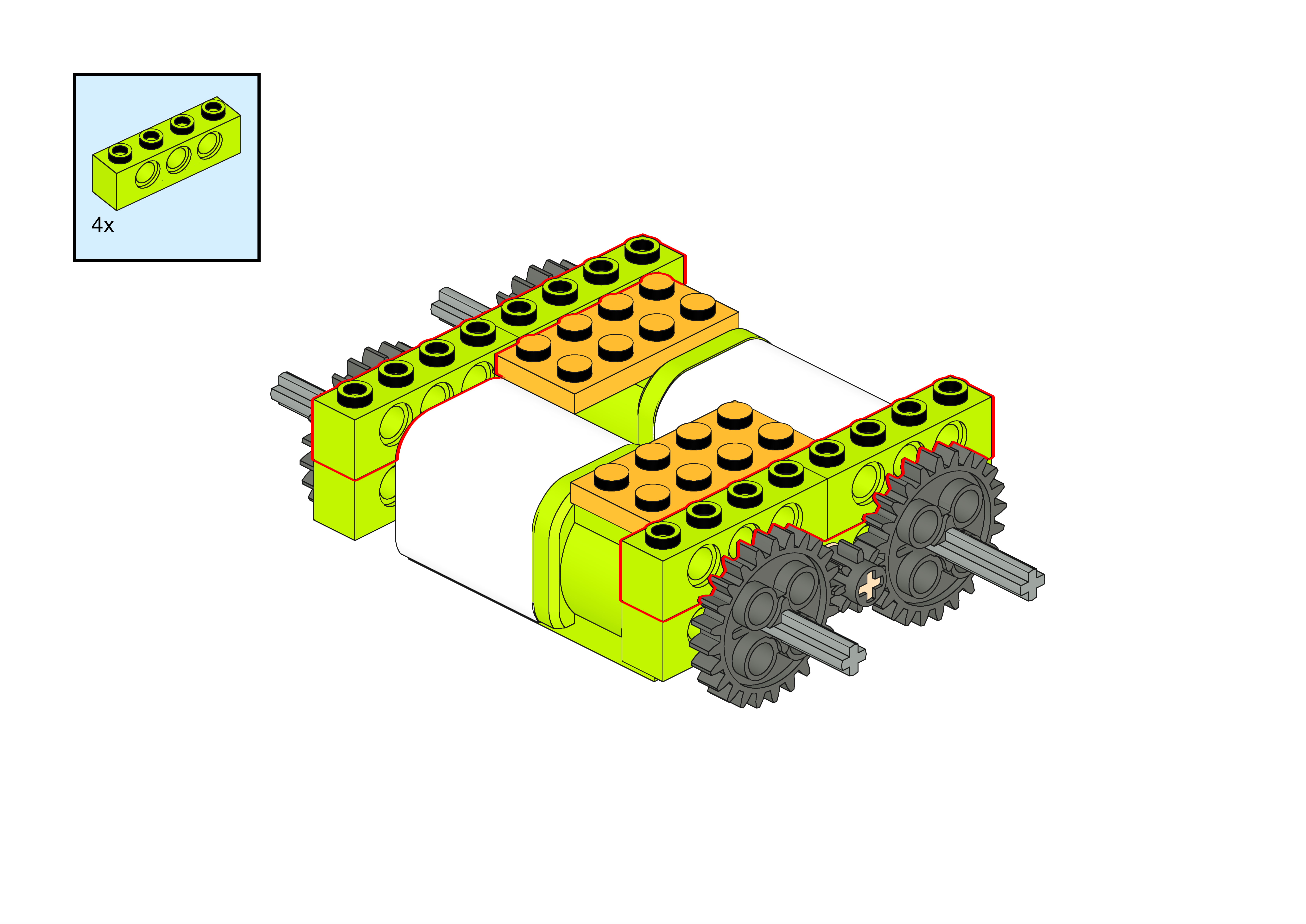

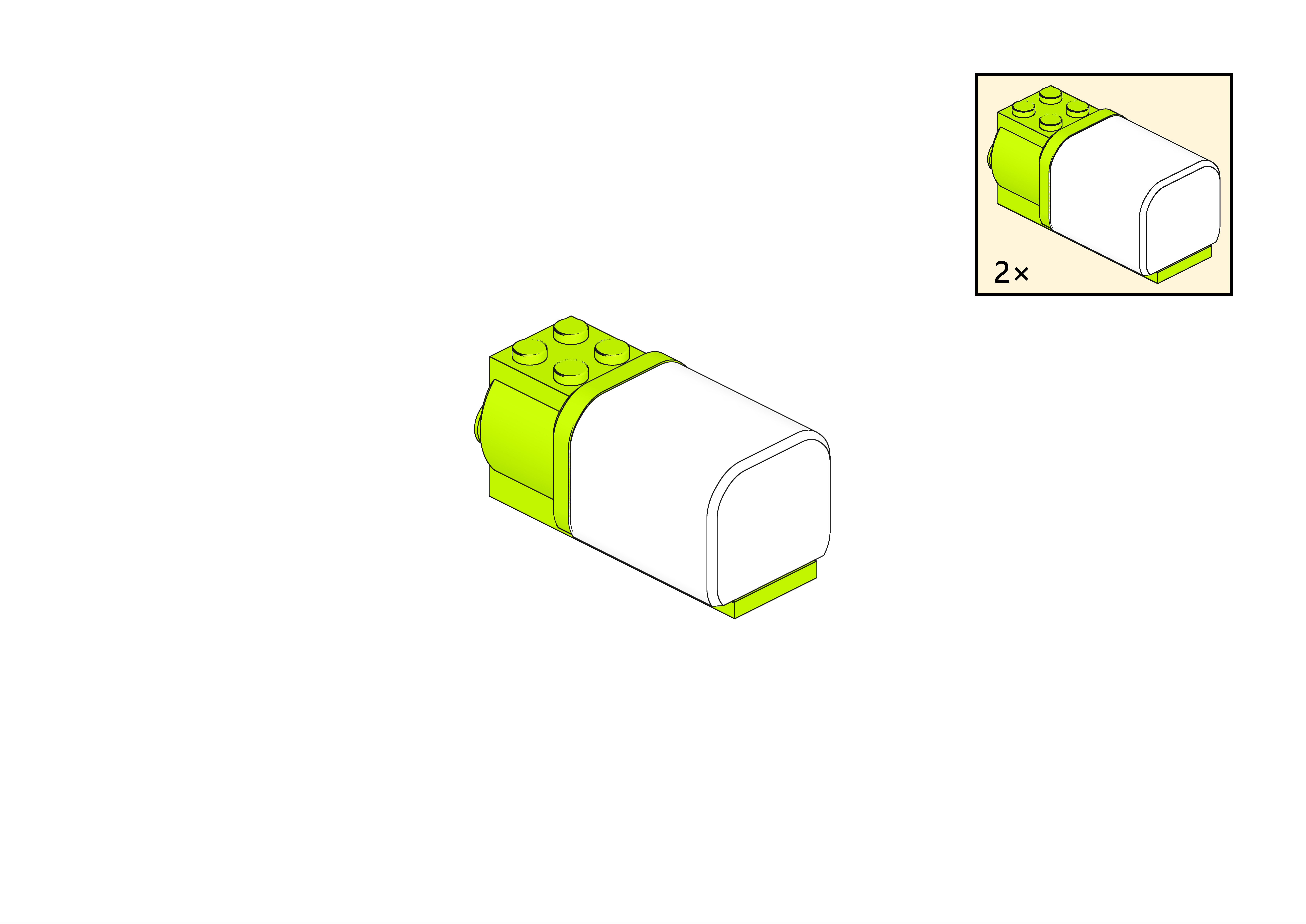

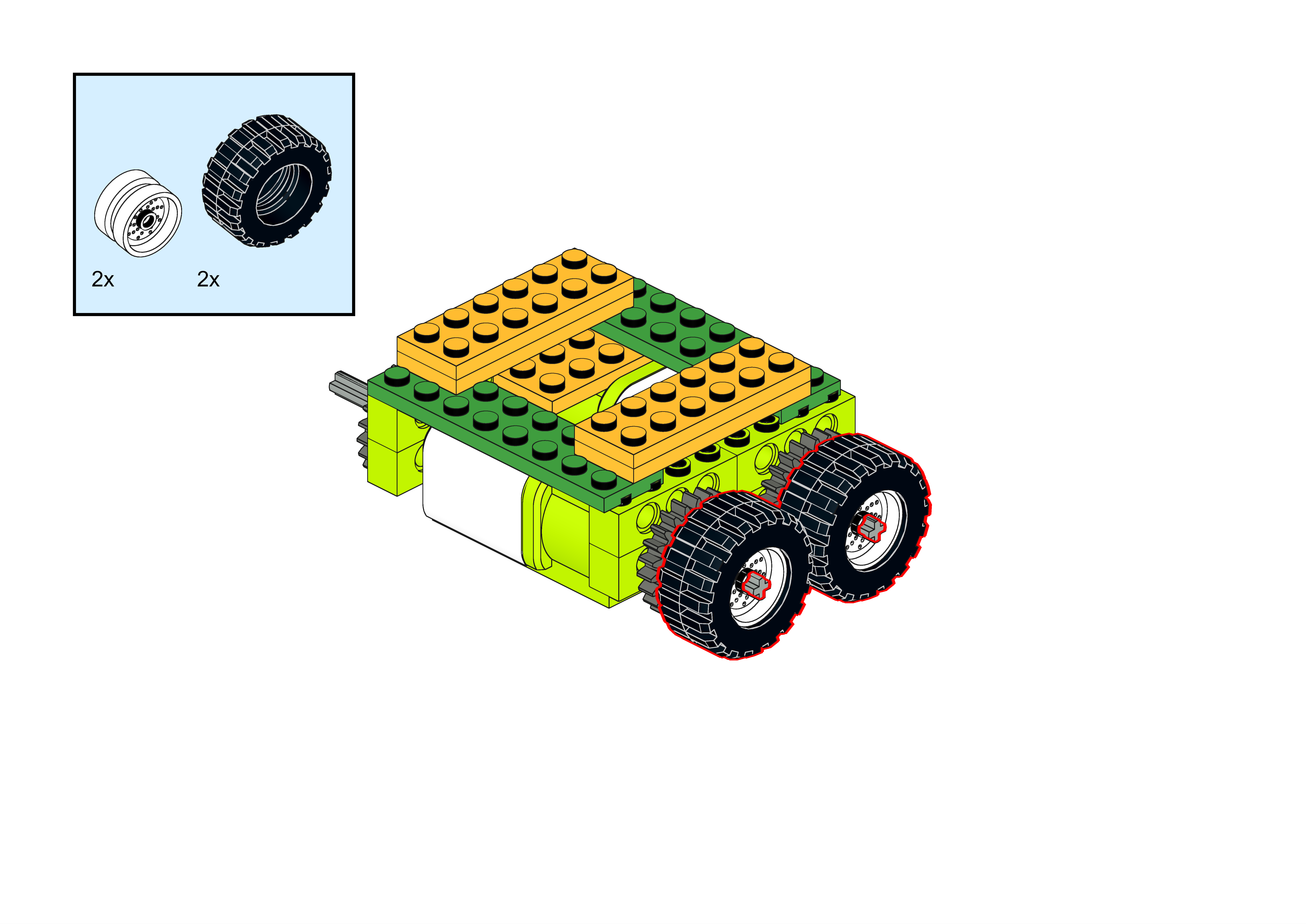

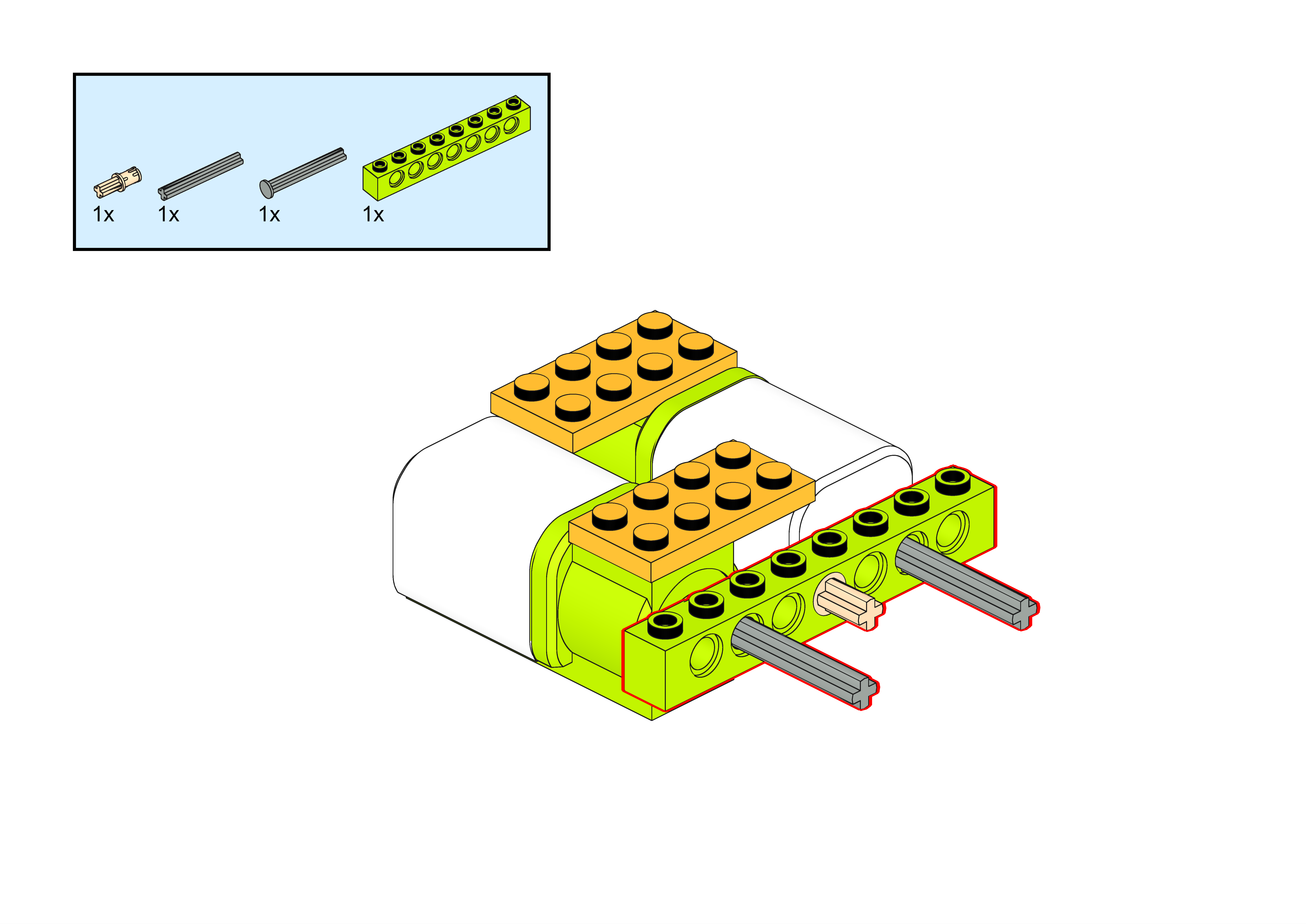

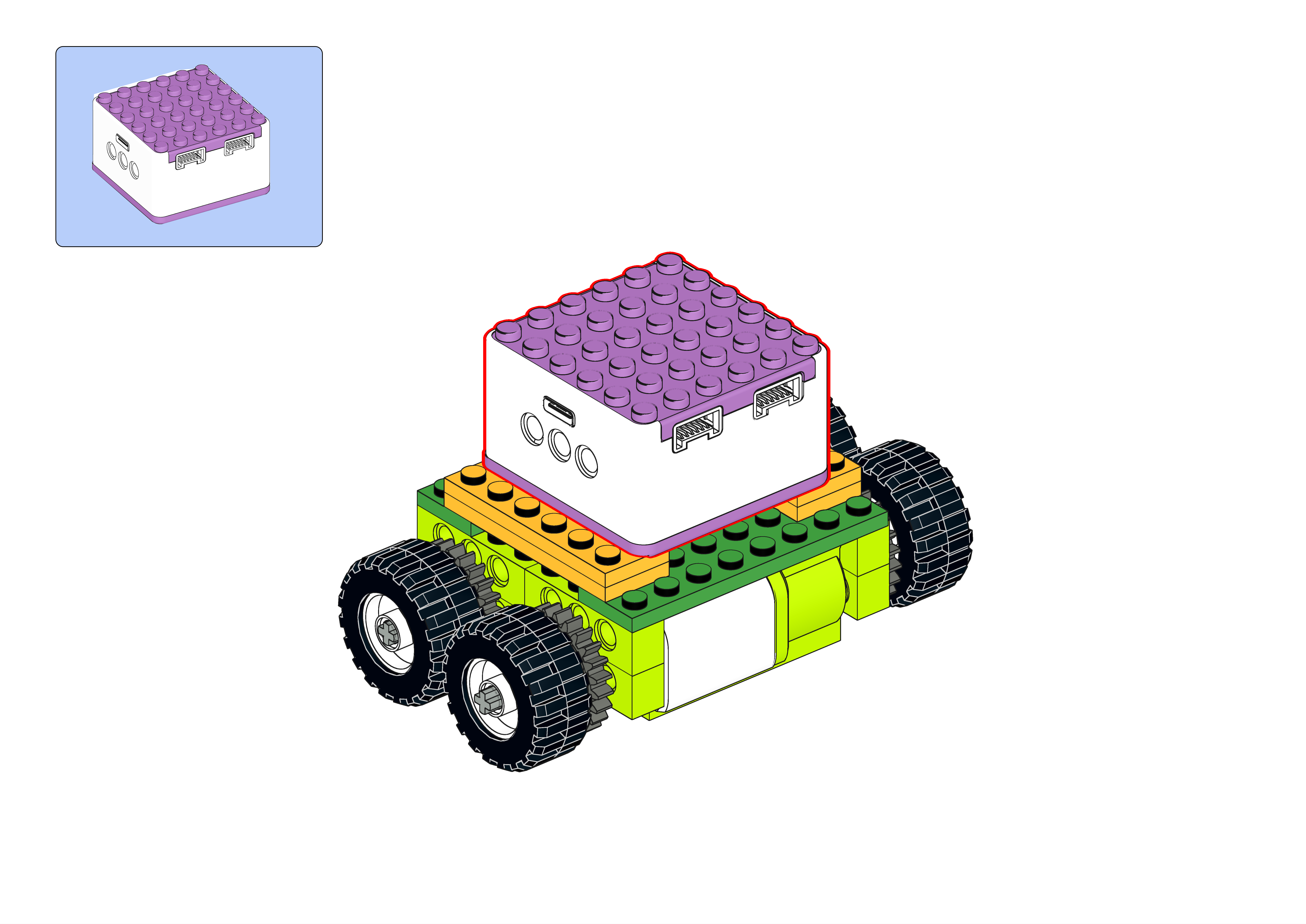

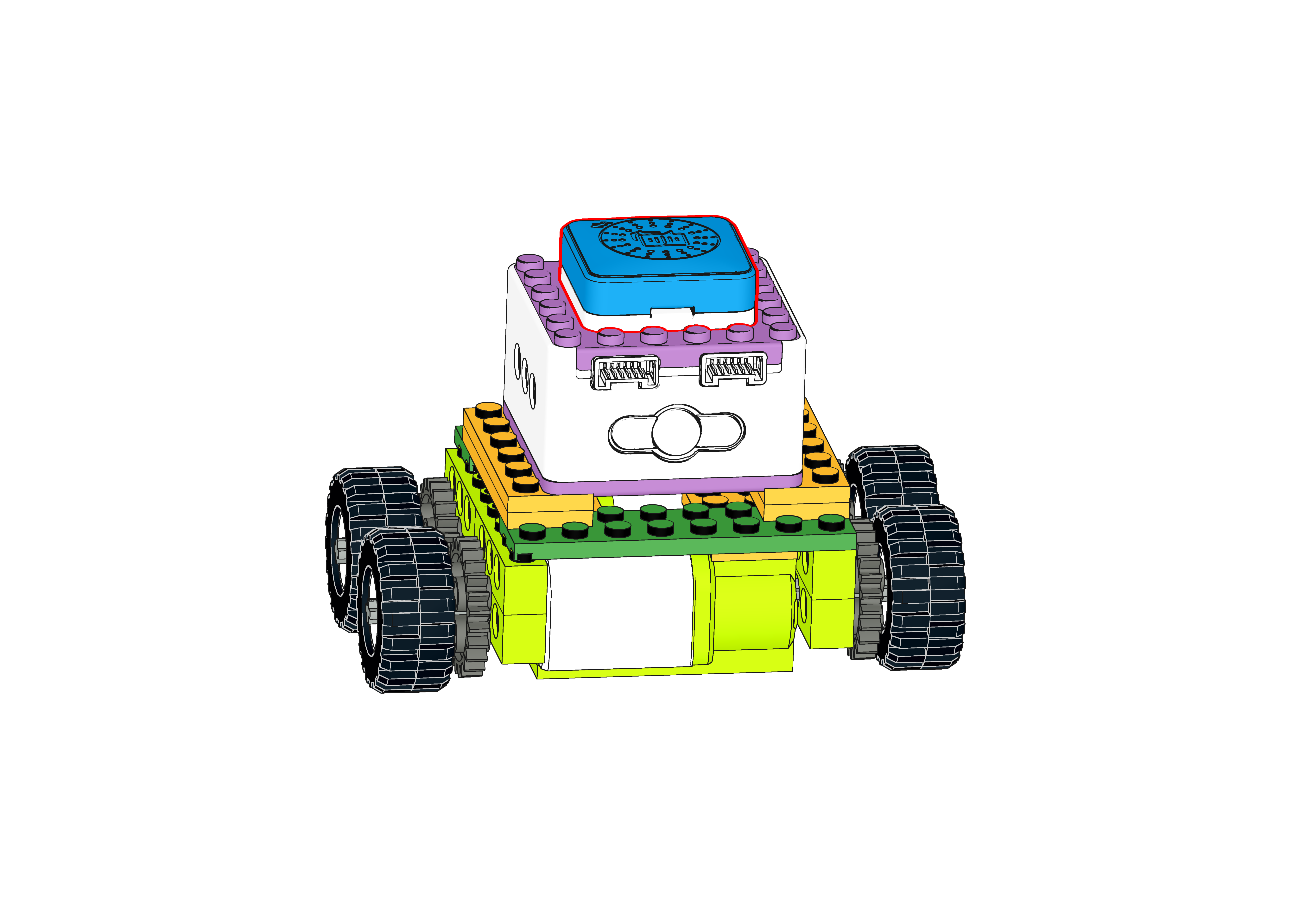

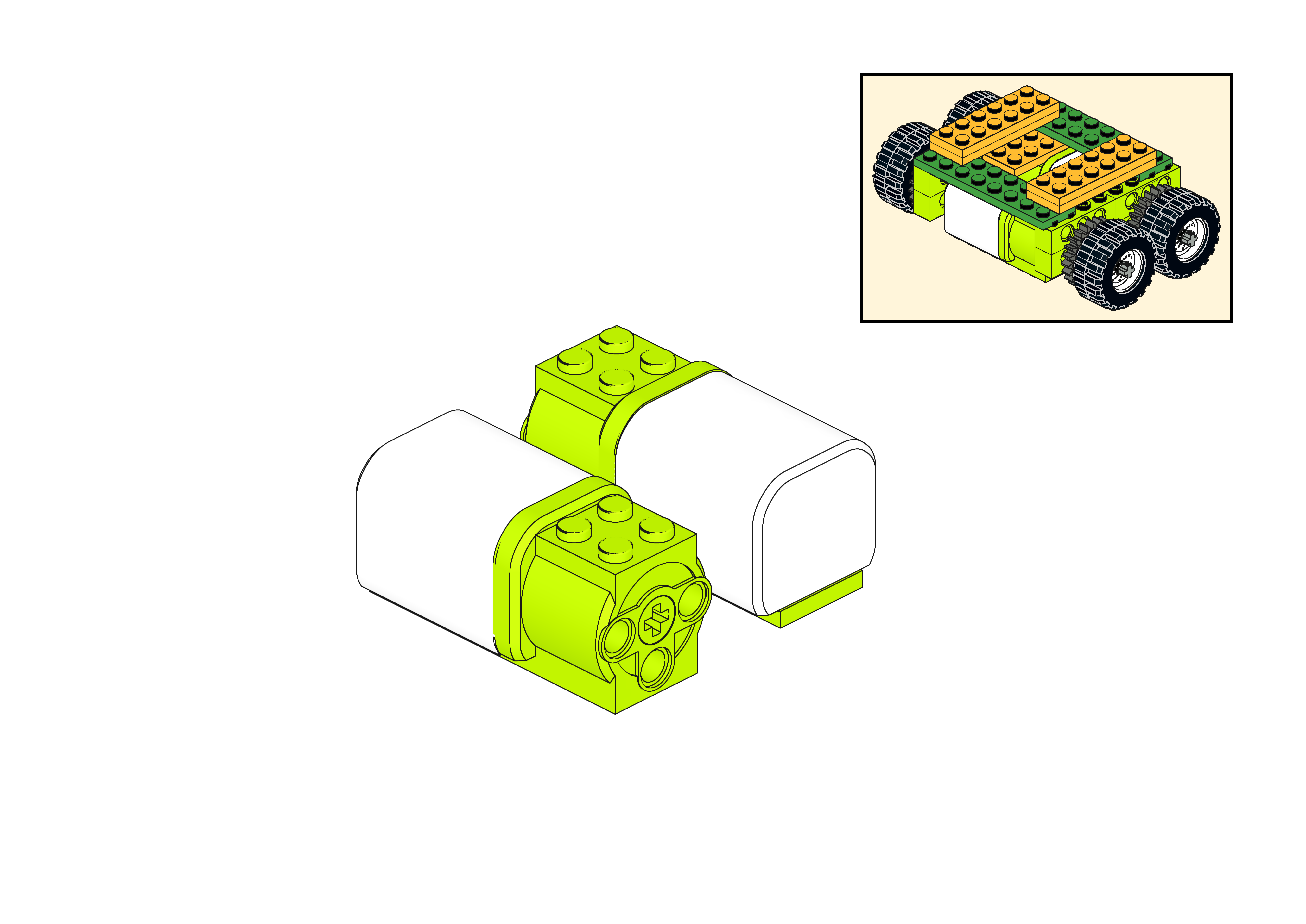

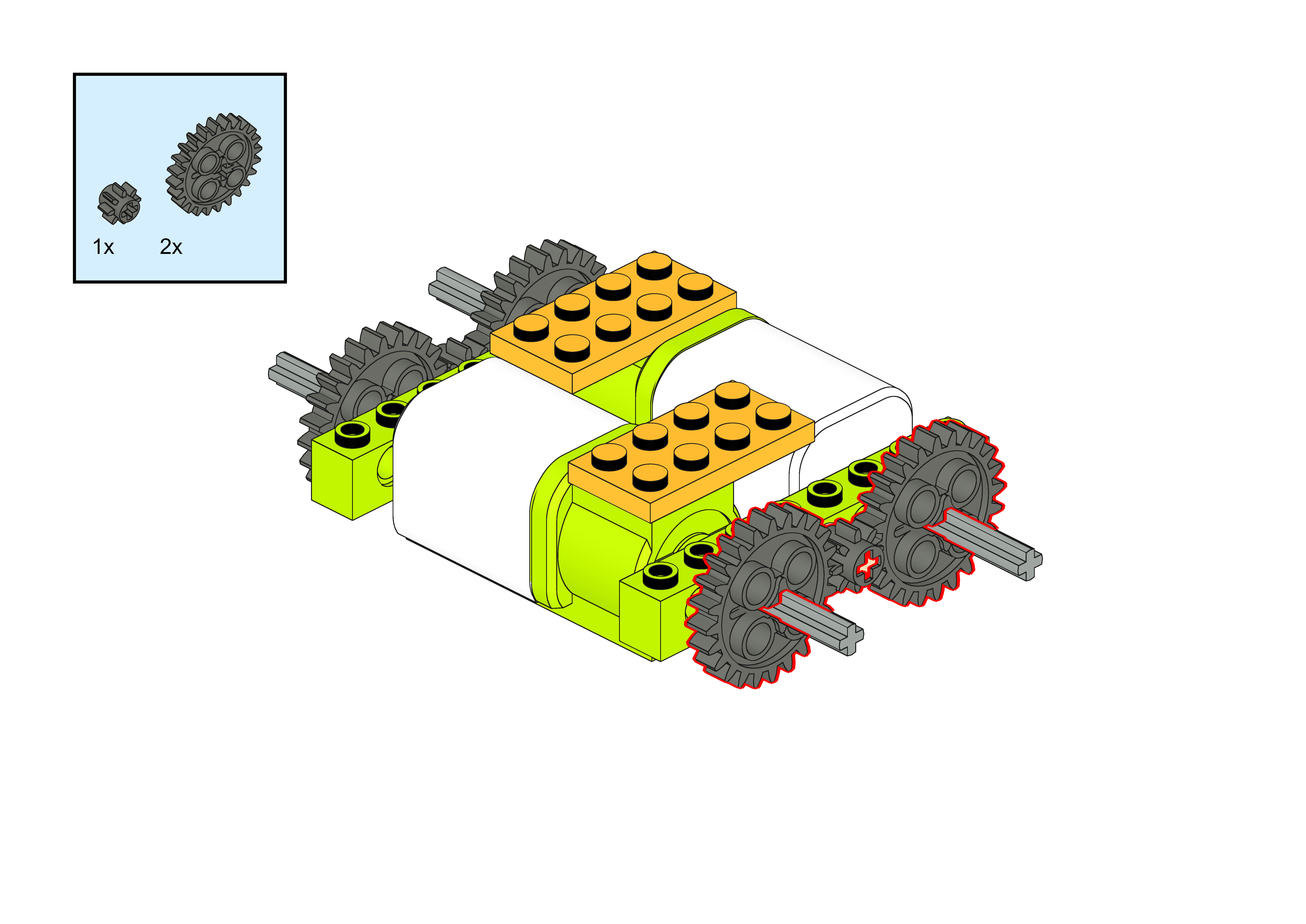

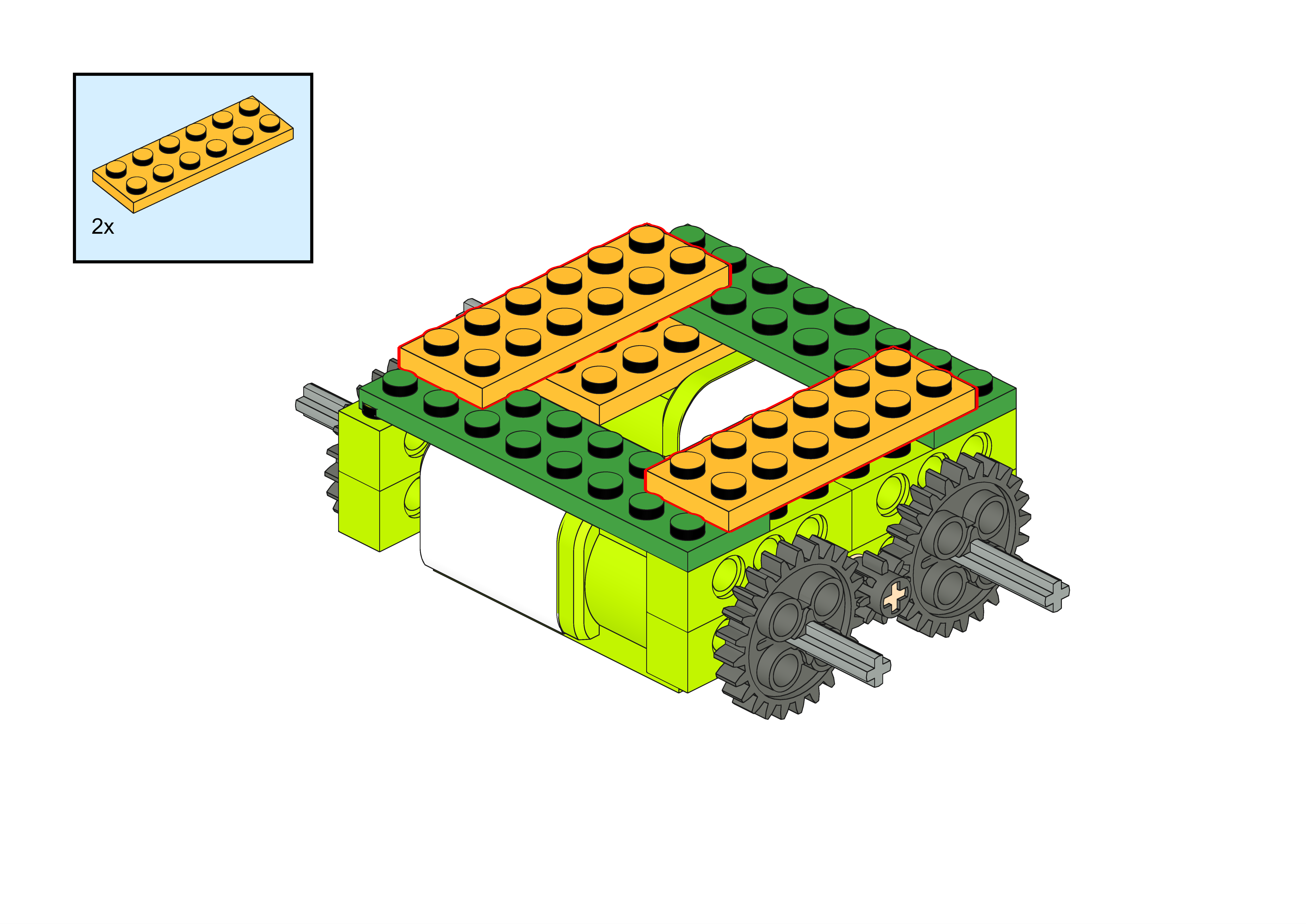

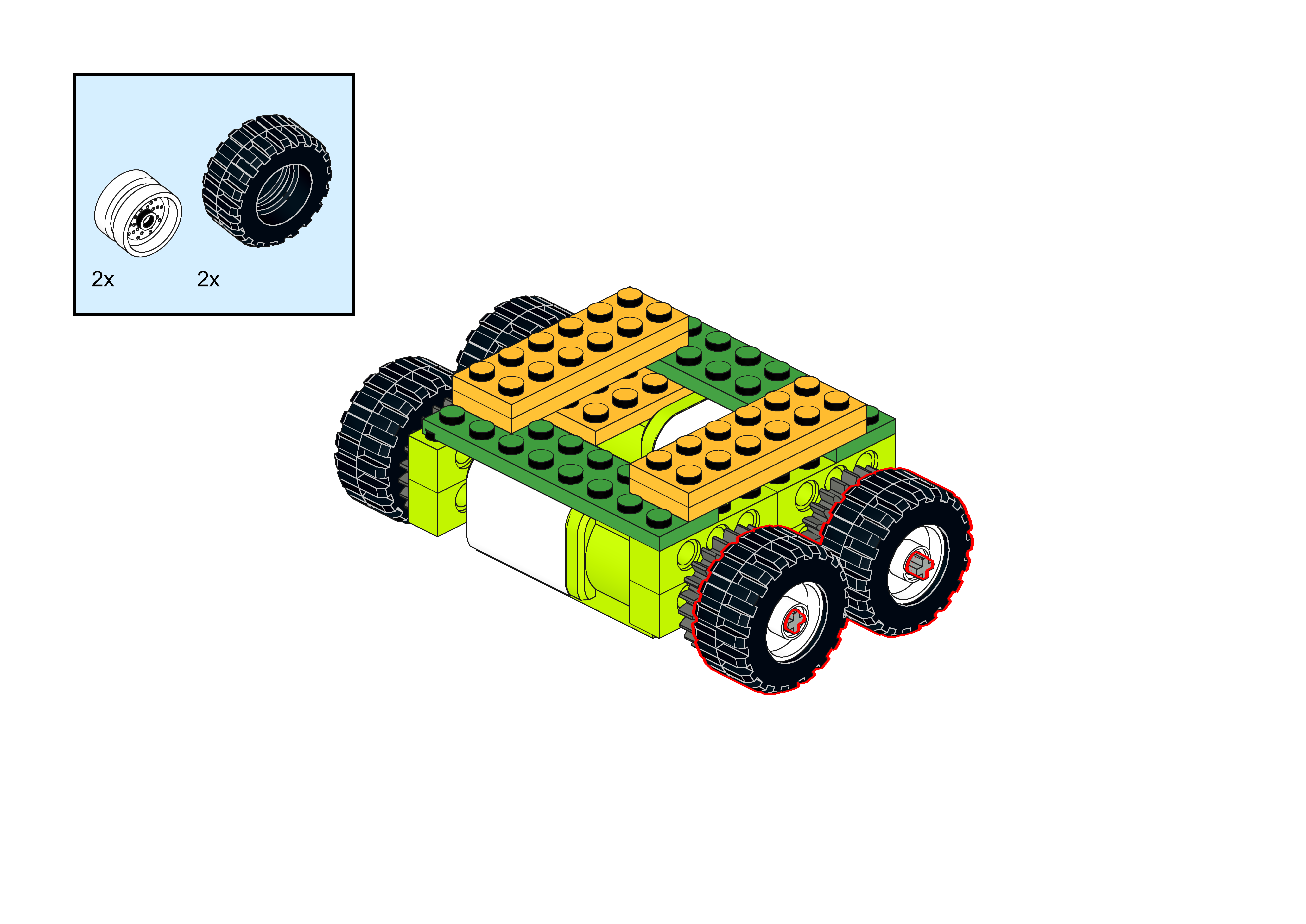

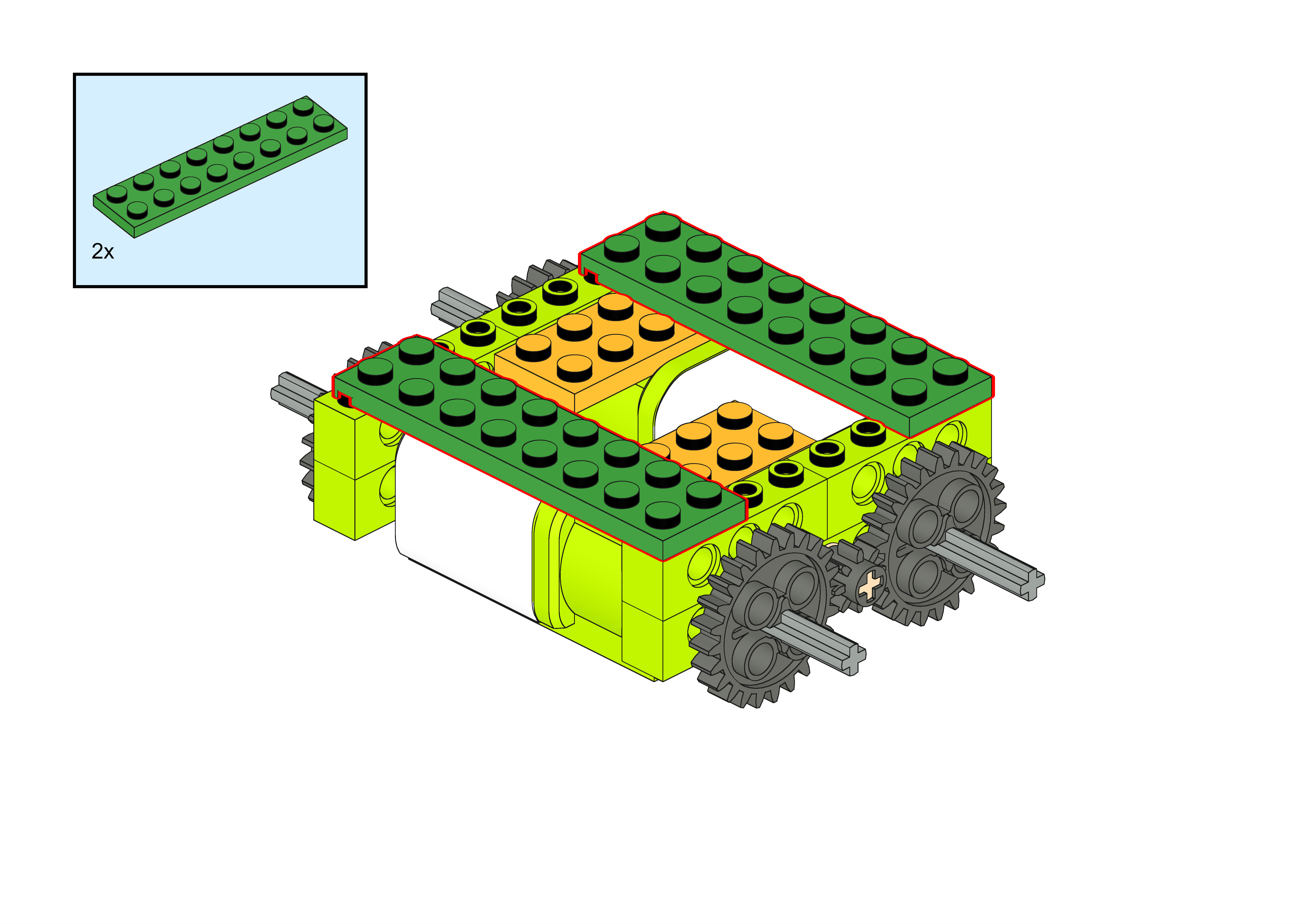

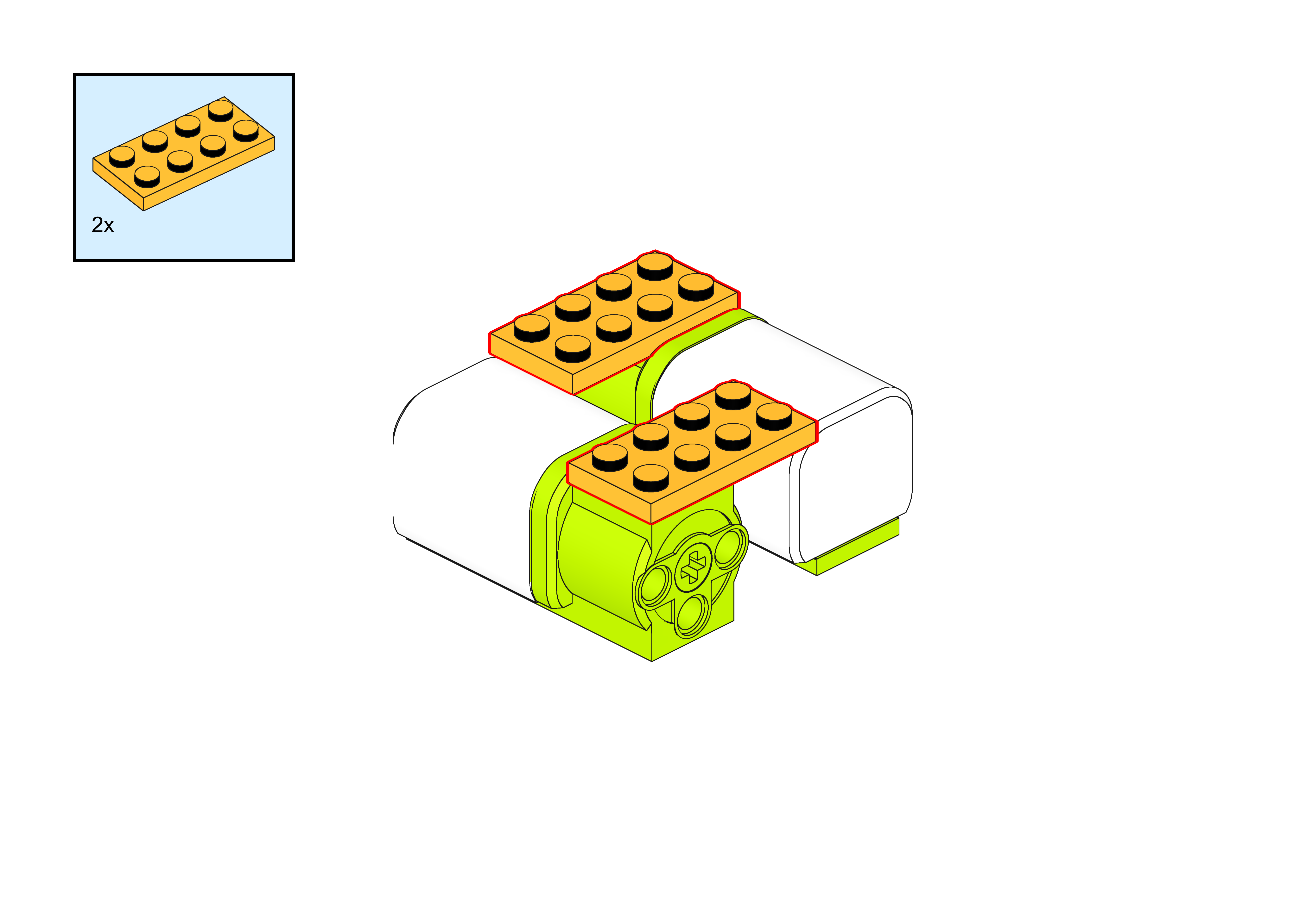

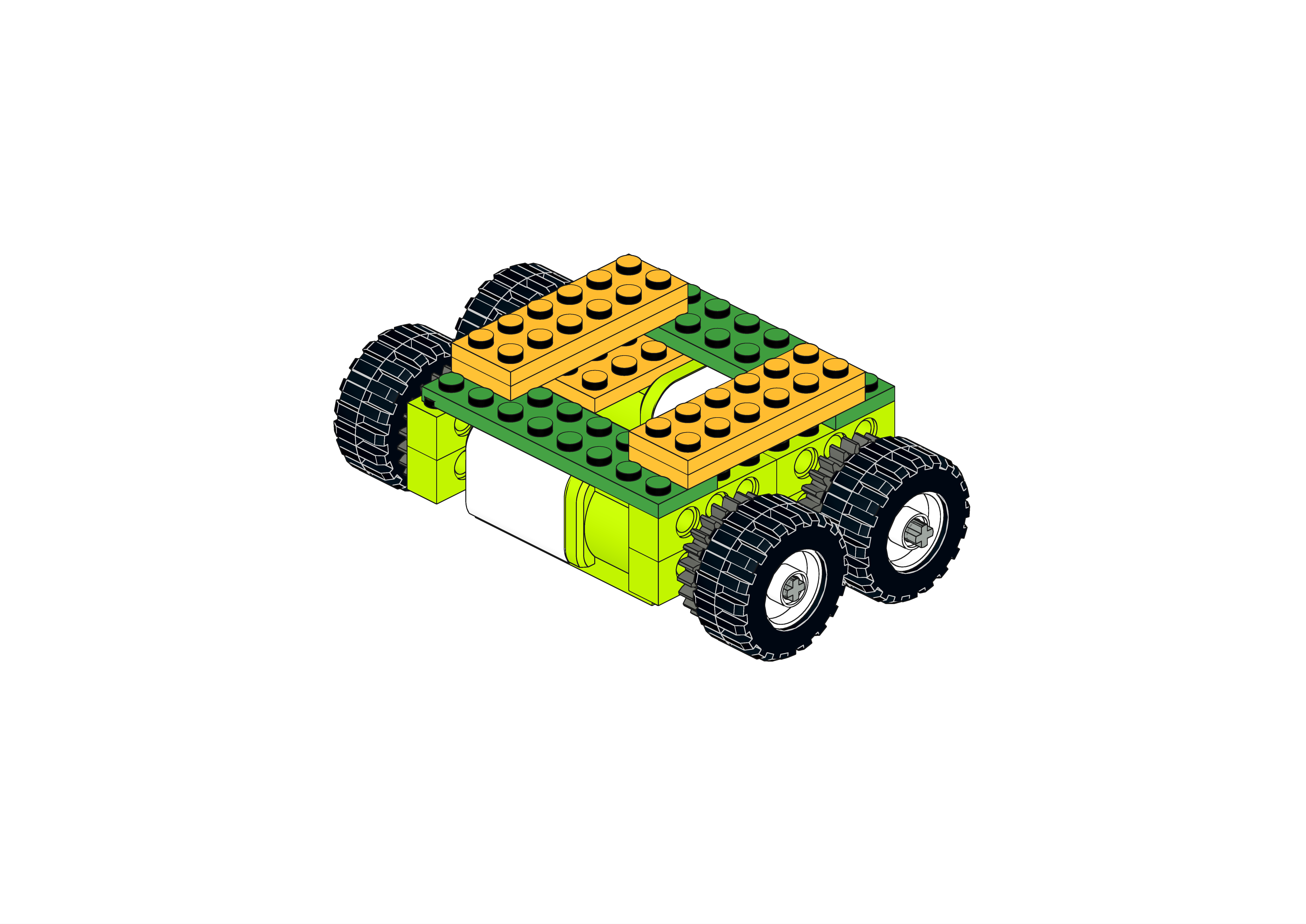

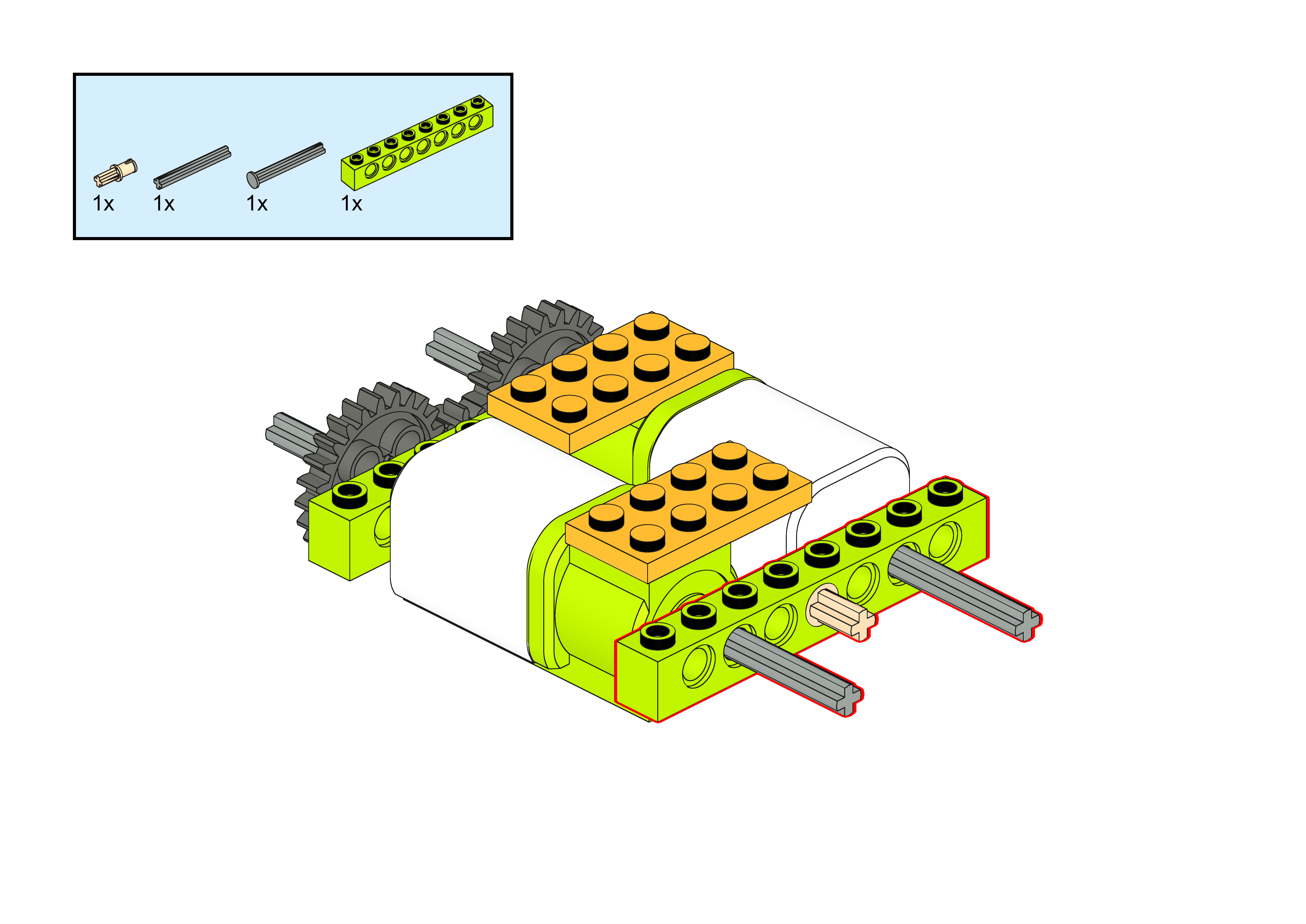

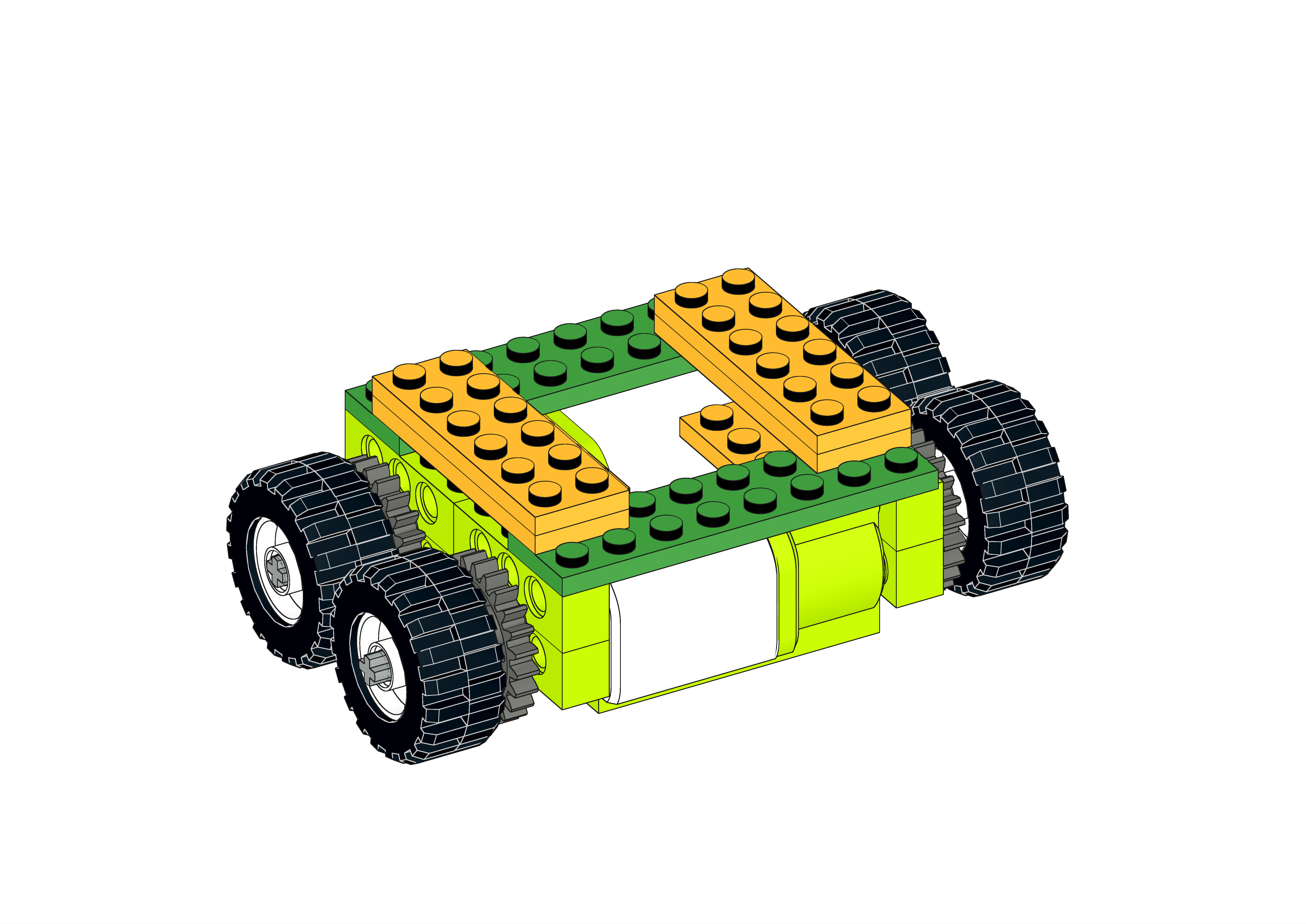

  1. Structure Setup

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7

Step 8

Step 9

Step 10

Step 11

Step 12

Step 13

Step 14

Step 15

Step 16

Step 17

Step 18

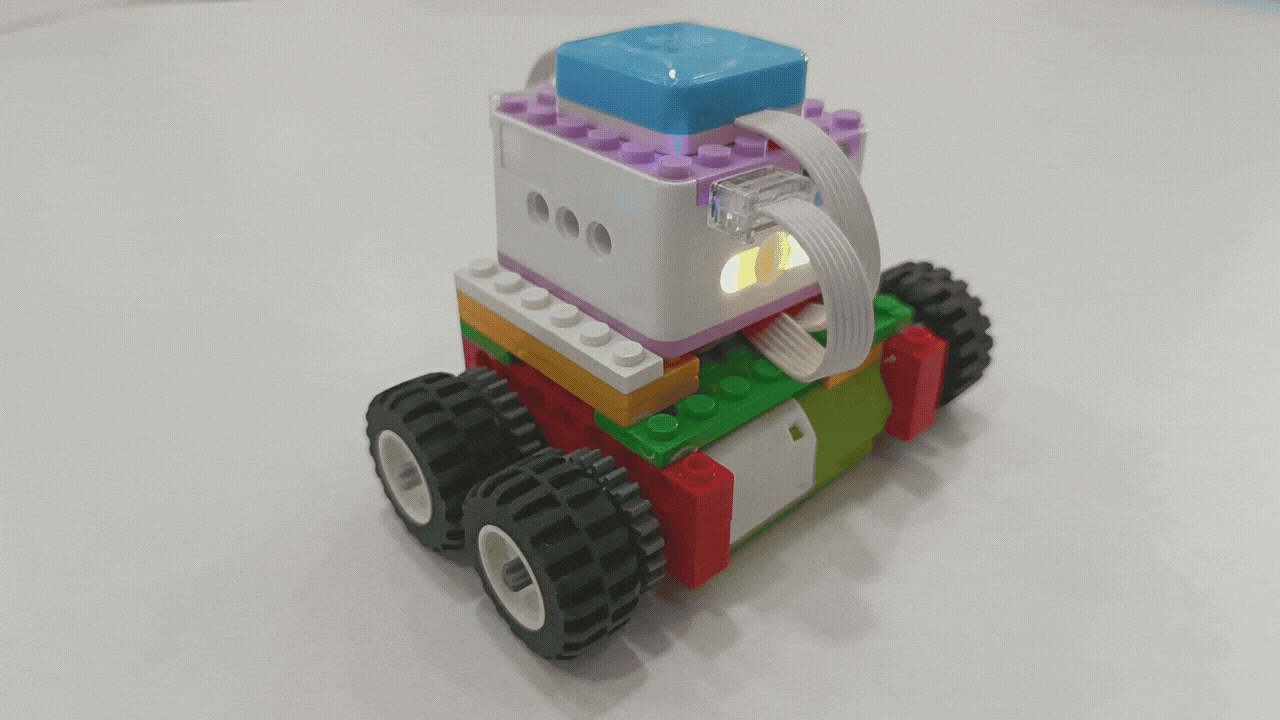

  1. Demonstration

  1. Steps Display

1、Press and hold the power button on the Xiao Q Robot for 3s to power it on.
Connect the motor modules to Ports 1 and 2 (green side).

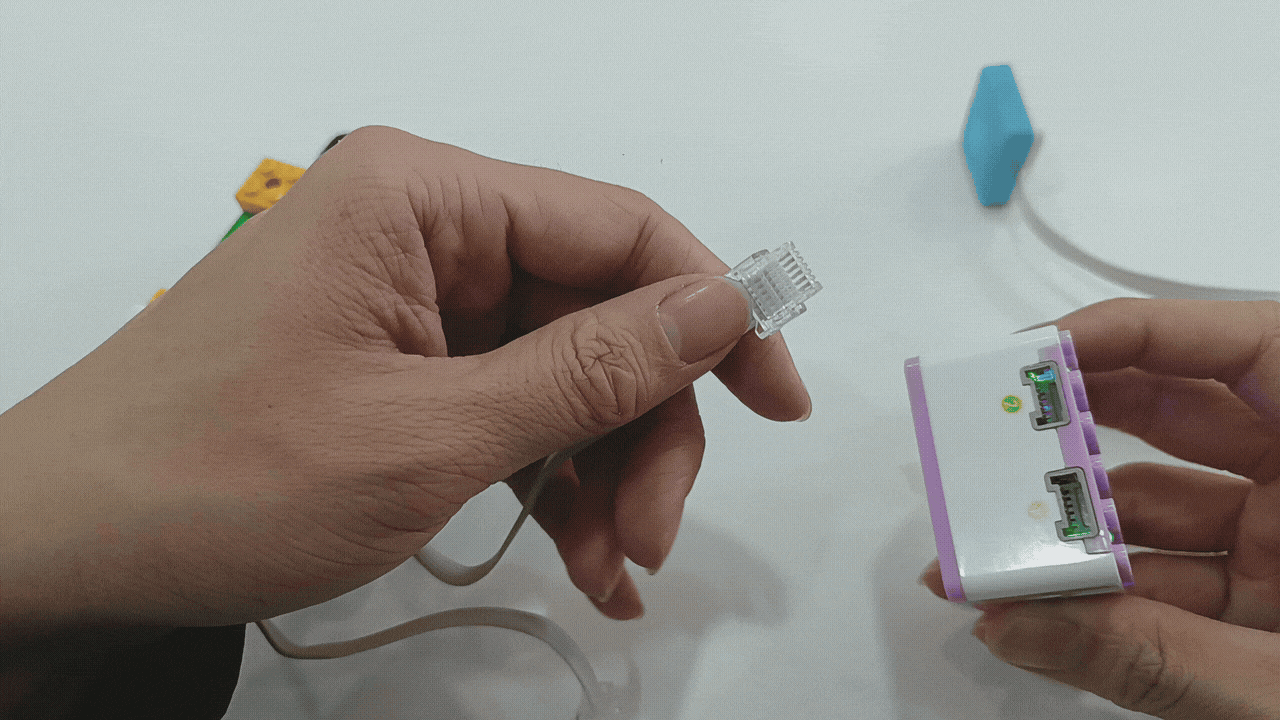

2、Connect the voice recognition sensor to Port 1 (blue side).

3、Wake up the voice recognition sensor by saying “Hello Xiao Q” and
wait for the response. Say the command: “Start programming”,
“Turn left”, “Wait for 1 second”, “Stop”, and “End programming.”
Say “Execute program” for the motors to perform the corresponding actions.

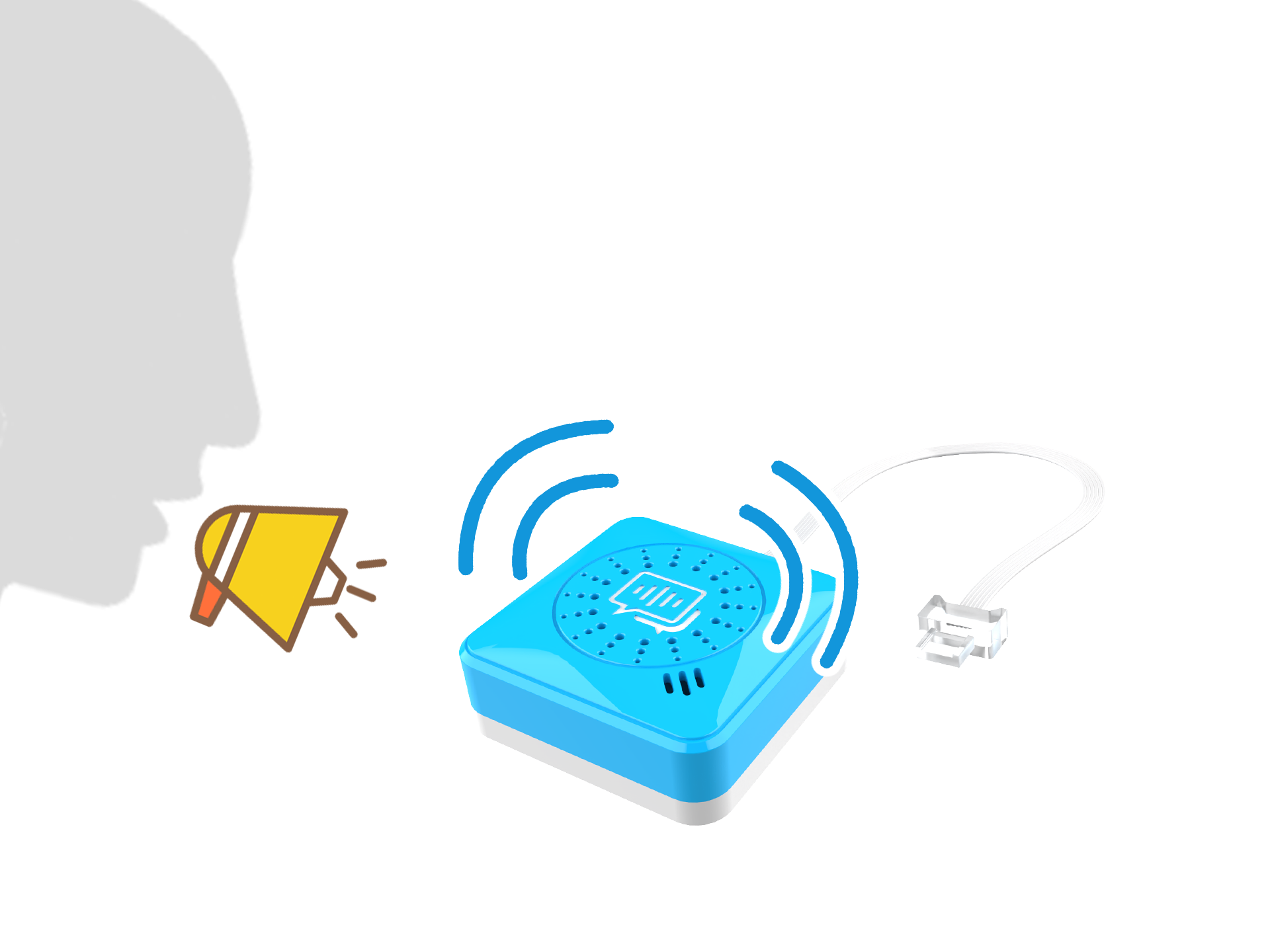

Attached: Detection diagram of the voice recognition sensor.

*Other command word effects can be tried on your own. Click here to learn more command words.

Voice Command List

Type

Commands

Responses

wake-up phrase

Hello,Xiao Q

Xiao Q is here

Motion commands

Move forward

Move forward recognized

Motion commands

Move backward

Move backward recognized

Motion commands

Turn left

Turn left recognized

Motion commands

Turn right

Turn right recognized

Motion commands

Stop movement

Stop movement recognized

Motor commands

Motor 1 run forward

Motor 1 run forward recognized

Motor commands

Motor 1 run backward

Motor 1 run backward recognized

Motor commands

Motor 1 stop

Motor 1 stop recognized

Motor commands

Motor 2 run forward

Motor 2 run forward recognized

Motor commands

Motor 2 run backward

Motor 2 run backward recognized

Motor commands

Motor 2 stop

Motor 2 stop recognized

Waiting commands

Wait for one second

Wait for one second recognized

Waiting commands

Wait for two seconds

Wait for two seconds recognized

Waiting commands

Wait for three seconds

Wait for three seconds recognized

Waiting commands

Wait for ten seconds

Wait for ten seconds recognized

Waiting commands

Wait for twenty seconds

Wait for twenty seconds recognized

Waiting commands

Wait for thirty seconds

Wait for thirty seconds recognized

Waiting commands

Wait for tilting

Wait for tilting recognized

Waiting commands

Wait for shaking

Wait for shaking recognized

Waiting commands

Wait for approching

Wait for approching recognized

Waiting commands

Wait for button 1 press

Wait for button 1 press recognized

Waiting commands

Wait for button 2 press

Wait for button 2 press recognized

Light commands

Turn on the light

Turn on the light recognized

Light commands

Turn off the light

Turn off the light recognized

Light commands

Red light

Red light recognized

Light commands

Yellow light

Yellow light recognized

Light commands

Green light

Green light recognized

Light commands

Blue light

Blue light recognized

program start / finish command

Start programing

Start programing recognized

program start / finish command

Finish programing

Finish programing recognized

program run / stop commands

Run the program

Run the program recognized

program run / stop commands

Stop the program

Stop the program recognized
